ACSR Aluminum Conductor Steel Reinforced 95/55mm2 AL12/3.2 ST7/3.2 Bare Conductor BS215

Product Categories
Zhenglan Cable Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

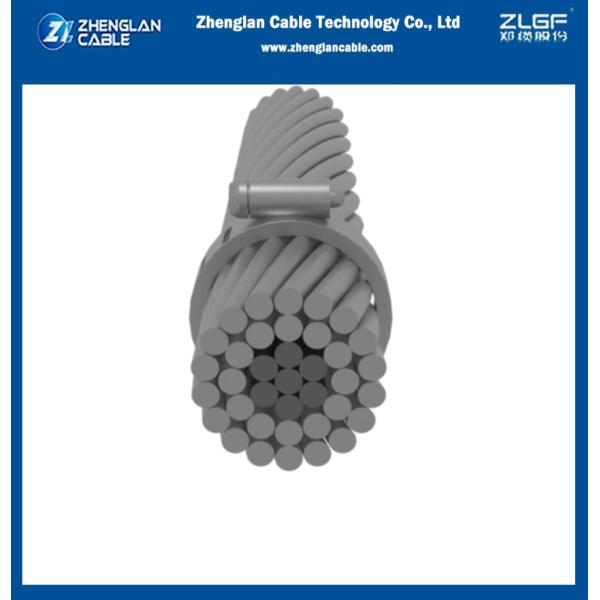

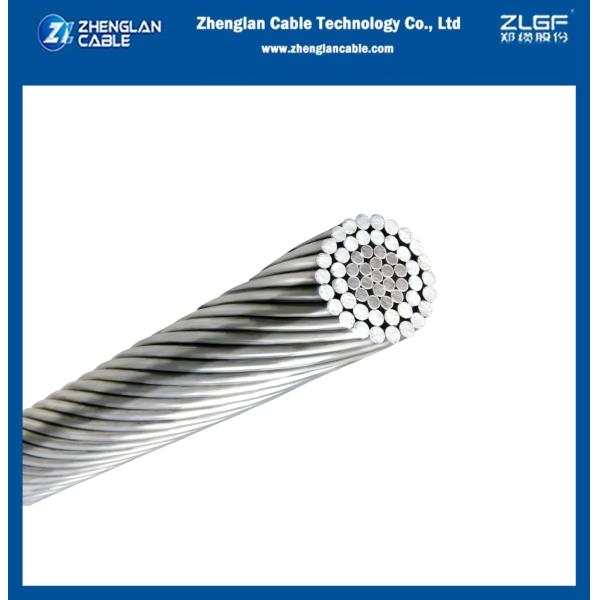

ACSR Aluminum Conductor Steel Reinforced 95/55mm2 AL12/3.2 ST7/3.2 Bare Conductor BS215

  • 1
  • 2
  • 3

Brand Name : Zhenglan Cable

Model Number : 95/55mm2 AL12/3.2 ST7/3.2 Aluminum Conductor Steel Reinforced

Certification : 3C; ISO 9001:2015, ISO 14001:2005, OHSAS 18001:2007

Place of Origin : Henan, China

MOQ : Negotiable

Price : 0.5-80USD/m

Payment Terms : T/T, L/C

Supply Ability : 10-30tons/day

Delivery Time : 15 days

Packaging Details : Wooden drum, wood and steel drum,as customer's request

Material : Aluminum Conductor Steel Reinforced

Aluminum : aluminum and galvanized steel wire

Core : Steel

Cable Drum Length : Customized

characted : Bare Conductor

Contact Now

Application
The cables are designed for aerial power transmission lines. It`s advantageous for ACSR to be put up across a valley or river or under other various special geographic conditions.
Product Features
(1). Easy to set up and maintain;
(2). Low cost and high transmission capacity;
(3). Good electrical conductivity,;
(4). High mechanical strength and tensile strength, increased distance between two towers
Structure
Steel core aluminum stranded wire is made by twisting aluminum wire and steel wire, It is a steel core and an aluminum wire wrapped around the steel core by twisting; the steel core mainly plays the role of increasing strength, and the aluminum stranded wire mainly plays the role of transmitting electrical energy
Model NO.
DIN ACSR Conductor
Application
Overhead
Conductor Material
Aluminum and Steel
Sheath Material
No Sheath
Insulation Material
Bare
Material Shape
Round Wire
Range of Application
Overhead, Industrial, Power Station
Certification
ISO9001, CE, CCC, RoHS
Brand
Zhenglan Cable
Certifications
ISO9001, Ce, CCC, ISO14001, Pccc
Standard
ASTM, Icea, IEC, BS, NFC, GB/T, AS/NZS
Rated Vlotage
LV, Mv Hv
Delivery Time
15 Days
Shipping Term
Express or Sea
Experience
More Than 20 Years
Trade Term
Fob, CIF, CFR
Transport Package
Wooden Drum or or According to Your Request
Specification
95/55mm2 ACSR Conductor
Trademark
Zhenglan Cable
Origin
Henan, China
HS Code
7614900000
Production Capacity
2500km/Month
Code Calculated area Strand/

Dia.

 O.D. Linear mass Strength Resistance

at 20℃
Al/St. Al. Steel Total Al. Steel Al. St. Total
mm2 mm2 mm2 mm2 mm mm mm kg/km kg/km kg/km daN Ω/km
95/55 96.5 56.3 152.8 12/3.20 7/3.20 16.0 266 446 712 7935 0.2992

ACSR Aluminum Conductor Steel Reinforced 95/55mm2 AL12/3.2 ST7/3.2 Bare Conductor BS215

ACSR Aluminum Conductor Steel Reinforced 95/55mm2 AL12/3.2 ST7/3.2 Bare Conductor BS215

ACSR Aluminum Conductor Steel Reinforced 95/55mm2 AL12/3.2 ST7/3.2 Bare Conductor BS215

ACSR Aluminum Conductor Steel Reinforced 95/55mm2 AL12/3.2 ST7/3.2 Bare Conductor BS215

ACSR Aluminum Conductor Steel Reinforced 95/55mm2 AL12/3.2 ST7/3.2 Bare Conductor BS215

Why you choose us?

  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
